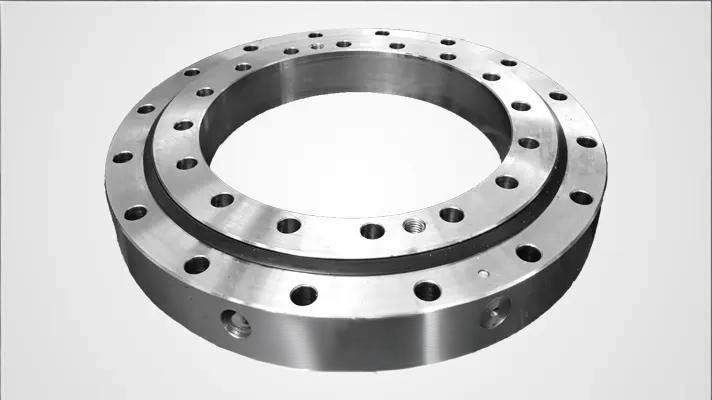

El anillo giratorio sin dientes transmite cargas desde una parte giratoria hacia la parte fija de un mecanismo. Las tensiones aplicadas de los elementos rodantes en las pistas de rodadura se calculan según las leyes de Hertz y los criterios modernos de plasticidad. ZZ lleva a cabo tratamientos de endurecimiento localizados que permiten satisfacer estos criterios tanto en términos de presión superficial como de fatiga del subsuelo.
Para la fabricación de coronas de orientación, ZZ selecciona las mejores especificaciones de material para adaptarse a la mayoría de usos previstos, estos materiales son fabricados por acerías homologadas, y en cada paso significativo de la fabricación se realizan inspecciones que permiten garantizar la calidad de los productos. La mayoría de las veces, seleccionamos aceros al carbono de alta calidad que nos permiten cumplir con todos los requisitos operativos. El endurecimiento y el revenido se llevan a cabo cuando las tensiones aplicadas dictan estos procesos.
| No. | Curve | Ring Dimension | Dimension of Mounting hole | N.W kg |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Through(Type A) | Thread(Typr B、C、D) | |||||||||||||||
| D | dn | H | h | Du | Dn | φ | n | Du | Dn | d1 | T | n | ||||
| mm | mm | mm | ||||||||||||||
| QU.400.16 | 1 | 482 | 318 | 60 | 10 | 448 | 352 | 15 | 12 | 448 | 352 | M14 | 28 | 12 | 42 | |
| QU.450.16 | 2 | 532 | 368 | 60 | 10 | 498 | 402 | 15 | 12 | 498 | 402 | M14 | 28 | 12 | 47 | |
| QU.500.16 | 3 | 582 | 418 | 60 | 10 | 548 | 452 | 15 | 14 | 548 | 452 | M14 | 28 | 14 | 53 | |
| QU.560.16 | 4 | 642 | 478 | 60 | 10 | 608 | 512 | 15 | 14 | 608 | 512 | M14 | 28 | 14 | 58 | |
| QU.560.20 | 5 | 656 | 464 | 70 | 10 | 618 | 502 | 17 | 14 | 618 | 502 | M16 | 30 | 14 | 72 | |
| QU.630.20 | 6 | 726 | 534 | 70 | 10 | 688 | 572 | 17 | 16 | 688 | 572 | M16 | 30 | 16 | 80 | |
| QU.710.20 | 7 | 806 | 614 | 70 | 10 | 768 | 652 | 17 | 18 | 768 | 652 | M16 | 30 | 18 | 91 | |
| QU.800.20 | 8 | 896 | 704 | 70 | 10 | 858 | 742 | 17 | 20 | 858 | 742 | M16 | 30 | 20 | 102 | |
| QU.800.25 | 9 | 908 | 692 | 78 | 10 | 864 | 736 | 22 | 18 | 864 | 736 | M20 | 36 | 18 | 130 | |
| QU.900.25 | 10 | 1008 | 792 | 78 | 10 | 964 | 836 | 22 | 20 | 964 | 836 | M20 | 36 | 20 | 146 | |
| QU.1000.25 | 11 | 1108 | 892 | 78 | 10 | 1064 | 936 | 22 | 24 | 1064 | 936 | M20 | 36 | 24 | 162 | |
| QU.1000.32 | 12 | 1124 | 876 | 90 | 10 | 1074 | 926 | 24 | 24 | 1074 | 926 | M22 | 40 | 24 | 212 | |
| QU.1120.32 | 13 | 1244 | 996 | 90 | 10 | 1194 | 1046 | 24 | 28 | 1194 | 1046 | M22 | 40 | 28 | 237 | |
| QU.1250.32 | 14 | 1374 | 1126 | 90 | 10 | 1324 | 1176 | 24 | 32 | 1324 | 1176 | M22 | 40 | 32 | 264 | |
| QU.1400.32 | 15 | 1524 | 1276 | 90 | 10 | 1474 | 1326 | 24 | 36 | 1474 | 1326 | M22 | 40 | 36 | 285 | |
| QU.1250.40 | 16 | 1394 | 1108 | 102 | 12 | 1336 | 1164 | 26 | 32 | 1336 | 1164 | M24 | 45 | 32 | 351 | |
| QU.1400.40 | 17 | 1544 | 1258 | 102 | 12 | 1486 | 1314 | 26 | 36 | 1486 | 1314 | M24 | 45 | 36 | 393 | |
| QU.1600.40 | 18 | 1744 | 1458 | 102 | 12 | 1686 | 1514 | 26 | 40 | 1686 | 1514 | M24 | 45 | 32 | 455 | |
| QU.1800.40 | 19 | 1944 | 1658 | 102 | 12 | 1886 | 1714 | 26 | 44 | 1886 | 1714 | M24 | 45 | 44 | 507 | |
| QU.1600.50 | 20 | 1766 | 1434 | 124 | 12 | 1704 | 1496 | 30 | 40 | 1704 | 1496 | M27 | 50 | 40 | 647 | |
| QU.1800.50 | 21 | 1966 | 1634 | 124 | 12 | 1904 | 1696 | 30 | 44 | 1904 | 1696 | M27 | 50 | 44 | 730 | |
| QU.2000.50 | 22 | 2166 | 1834 | 124 | 12 | 2104 | 1896 | 30 | 48 | 2104 | 1896 | M27 | 50 | 48 | 812 | |
| QU.2240.50 | 23 | 2406 | 2074 | 124 | 12 | 2344 | 2136 | 30 | 54 | 2344 | 2136 | M27 | 50 | 54 | 909 | |
| QU.2500.50 | 24 | 2666 | 2334 | 124 | 12 | 2604 | 2396 | 30 | 60 | 2604 | 2396 | M27 | 50 | 60 | 1015 | |
| QU.2500.60 | 25 | 2696 | 2304 | 150 | 14 | 2626 | 2374 | 33 | 60 | 2626 | 2374 | M30 | 56 | 60 | 1457 | |
| QU.2800.60 | 26 | 2996 | 2604 | 150 | 14 | 2926 | 2674 | 33 | 66 | 2926 | 2674 | M30 | 56 | 66 | 1634 | |
| QU.3150.60 | 27 | 3346 | 2954 | 150 | 14 | 3276 | 3024 | 33 | 72 | 3276 | 3024 | M30 | 56 | 72 | 1843 | |
| QU.3550.60 | 28 | 3746 | 3354 | 150 | 14 | 3676 | 3424 | 33 | 78 | 3676 | 3424 | M30 | 56 | 78 | 2082 | |
| QU.4000.60 | 29 | 4196 | 3804 | 150 | 14 | 4126 | 3874 | 33 | 80 | 4126 | 3874 | M30 | 56 | 80 | 2360 | |
